Product Advantages
Advantages of Technology

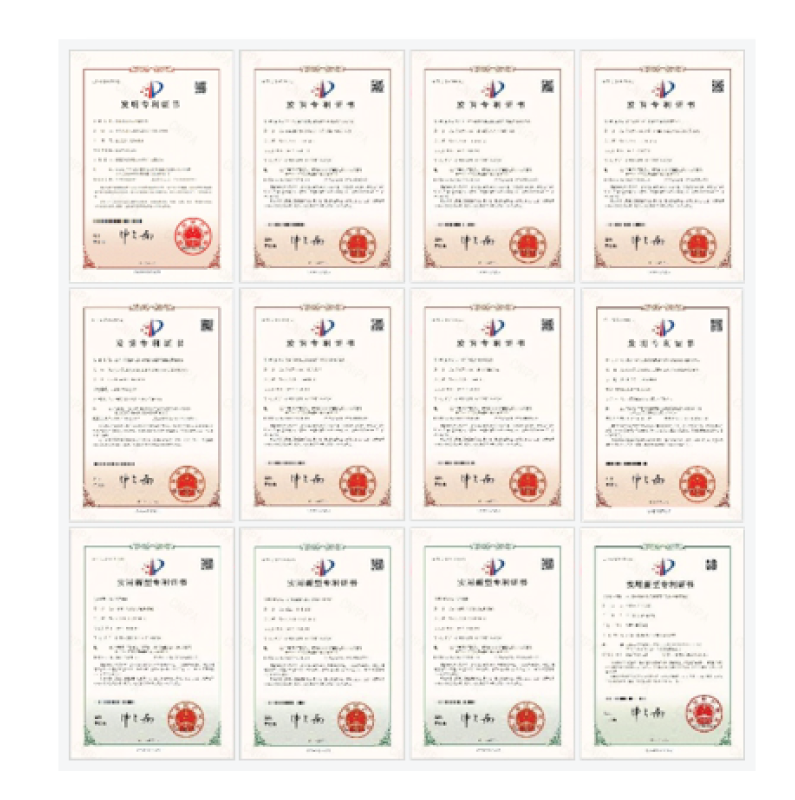

Patent
On the new CO2 compression energy storage system developing route, compression energy storage has a number of original and breakthrough energy storage technology patents worldwide, and is applying for more domestic invention patents and PCT patents in succession.
Multistage compression energy storage device and method based on carbon dioxide gas-liquid phase change;
Energy storage device and method based on carbon dioxide gas-liquid phase change;
Multi-stage compression energy storage device for converting heat energy into mechanical energy based on CO2 gas-liquid phase change;Â
Gas storage, energy storage device and control method and installation method of gas storage;Â
The invention discloses a composite energy storage system and a control method thereof;
The invention discloses a carbon dioxide energy storage system with a cold source and a control method of the carbon dioxide energy storage system;
Proprietary Technology
Up to 180 proprietary pro proprietary processes and material formulasÂ

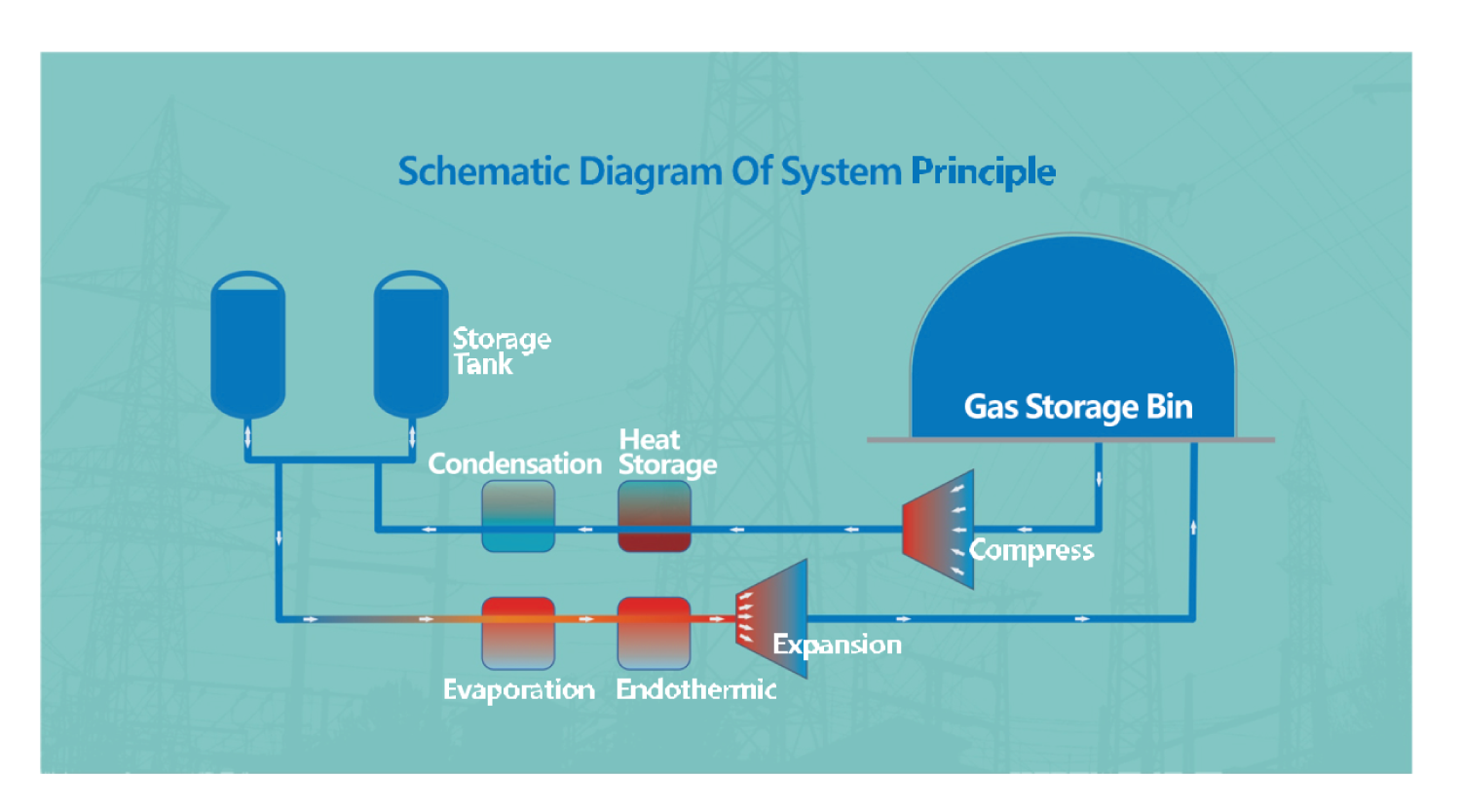

System Principle
The new CO2 compression energy storage system is a gas-liquid mutual conversion, two-phase collaborative energy storage technology. It is discard of geological conditions and operates at low pressure and temperature levels, offering high reliability and cost-effectiveness. The basic principle involves utilizing surplus power during periods of low electricity consumption to compress CO2 gas at normal temperature and pressure into a liquid phase. This process stores the heat energy generated during compression. During peak periods of electricity consumption, the stored heat energy is utilized to heat the liquid carbon dioxide, converting it back to a gaseous phase. This gas drives turbine to generate electricity.
Compressed Carbon Energy's CO2 compression energy storage system consists of six main components: gas storage system, liquid storage system, compression system, heat storage system, heat exchange system, and expansion power generation system. This new carbon dioxide compression energy storage system possesses complete independent intellectual property rights. It offers a wide range of power levels, capacities, and regional adaptability. It demonstrates excellent economic benefits in large-capacity and long-term energy storage applications, particularly suitable for 1 0MW, 1 00MW, and 1 0OOMW long-term energy storage systems. The key technology for system design and manufacturing is completely independent and controllable, enabling national production of power equipmentÂ
Application Scenario
Grid Side Energy Storage
Compared to pumped storage, compression energy storage s CO2 energy storage system has a wide range of applications
The construction of ' s CO2 compression energy storage system is not restricted by geographical conditions. Regardless of deserts, tidal flats, and garbage back fills, they can be used as carbon dioxide compression energy storage construction sites; regardless of climatic conditions, CO2 compression energy storage systems can be built in cold, temperate zone, and tropical regions.
The efficiency of CO2 compression energy storage system is better than that of pumped storage.
The cost of CO2 compression energy storage system is significantly lower than that of pumped storage.
The construction period of CO2 compression energy storage system is 10-12 months, significantly shorter than that of pumped storage.
The duration, charging power and generating power of the carbon dioxide compression energy storage system can be flexibly configured. With the stacking design, the system can be started gradually according to the needs of the power grid, in order to reduce the short-term impact on the power grid caused by the switching of the system working state.
User Side Energy Storage
Peak-to-valley power price difference: With the widening of the peak-to-valley power price difference among various provinces, the coastal provinces have achieved significant benefits from carbon dioxide compression energy storage only through peak-to-valley arbitrage.
Reduce capacity electricity price expenditure: For large-scale electricity users whose electricity consumption during peak hours is significantly greater than that during off-peak hours, through capacity electricity price management, the profitability of carbon dioxide compressed energy storage can be further improved.
Utilization of waste heat: Building materials, metallurgy, petroleum, chemical and other high-energy industries have abundant low-quality heat sources of about 50 degrees Celsius that can be utilized.
Power Side Energy Storage
Source-network-load-storage integration project
Realize on-site consumption of new energy and cooperate with the implementation of major projects (such as hydrogen production by electrolysis of water)
Distribution and storage of wind power and solar power generation:
The advantages of long-term energy storage are outstanding, and it can cooperate with wind power and solar power to meet the daily cycle demandÂ
Improve flexible output capacity and avoid abandoning solar and wind powerÂ
Save investment
Solar power projects in the whole county:
Build a centralized supporting energy storage system

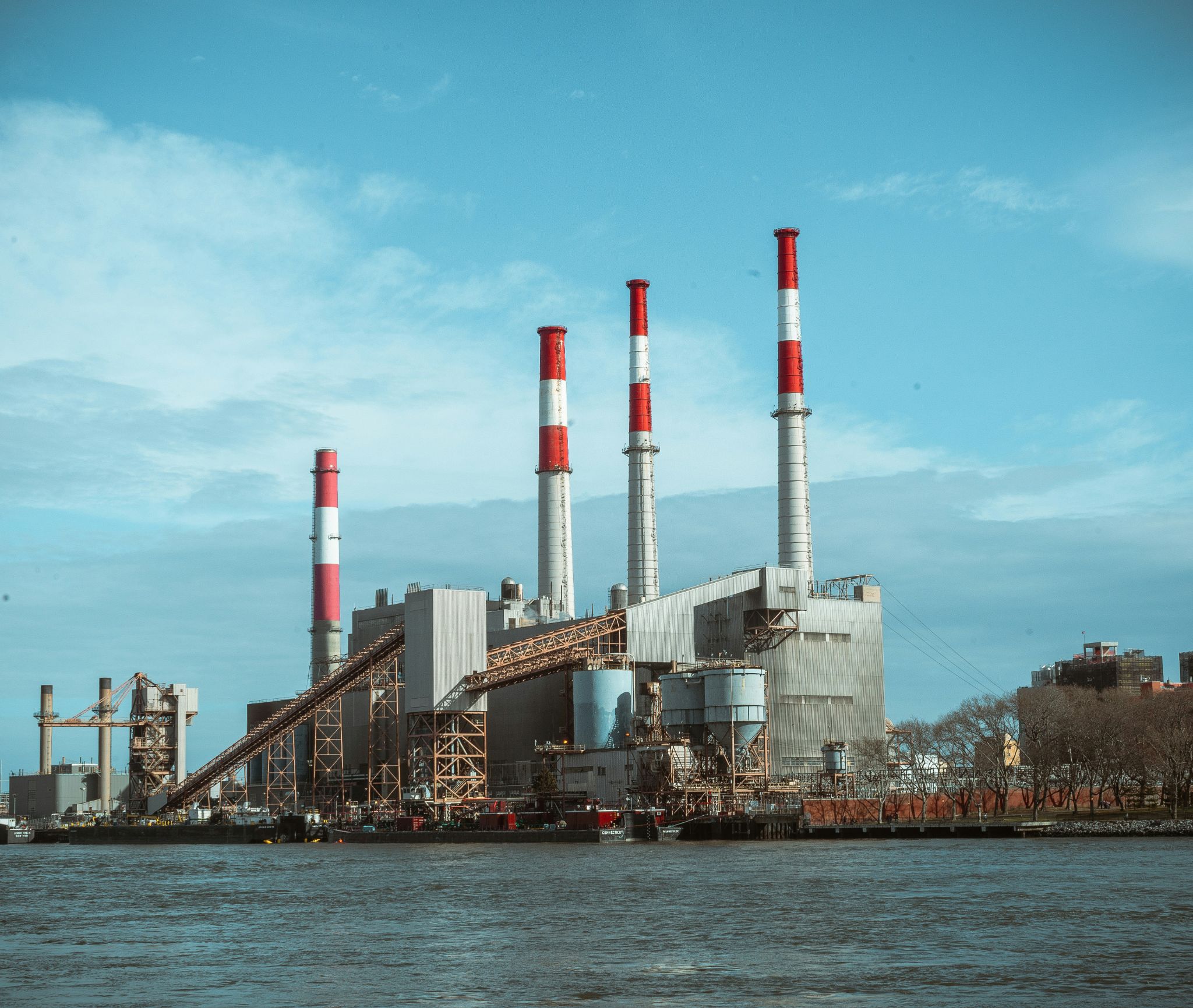

Energy storage for thermal power plants:
Utilize resources such as basic power facilities and vacant sites in thermal power plants to reduce construction and storage costs and improve energy storage economy
Improve the deep peak-shaving capability of thermal power units and reduce operation and maintenance costs
Solve the problem of reemployment of thermal power plant employees
Effectively utilize the abundant waste heat resources of thermal power plants to improve the comprehensive utilization efficiency of energy
